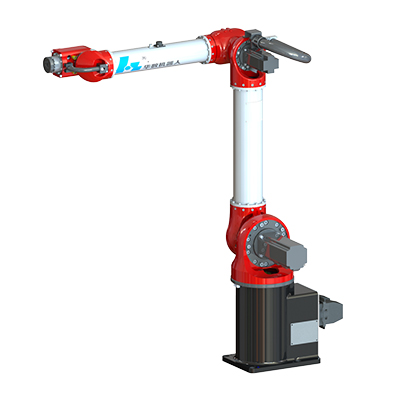

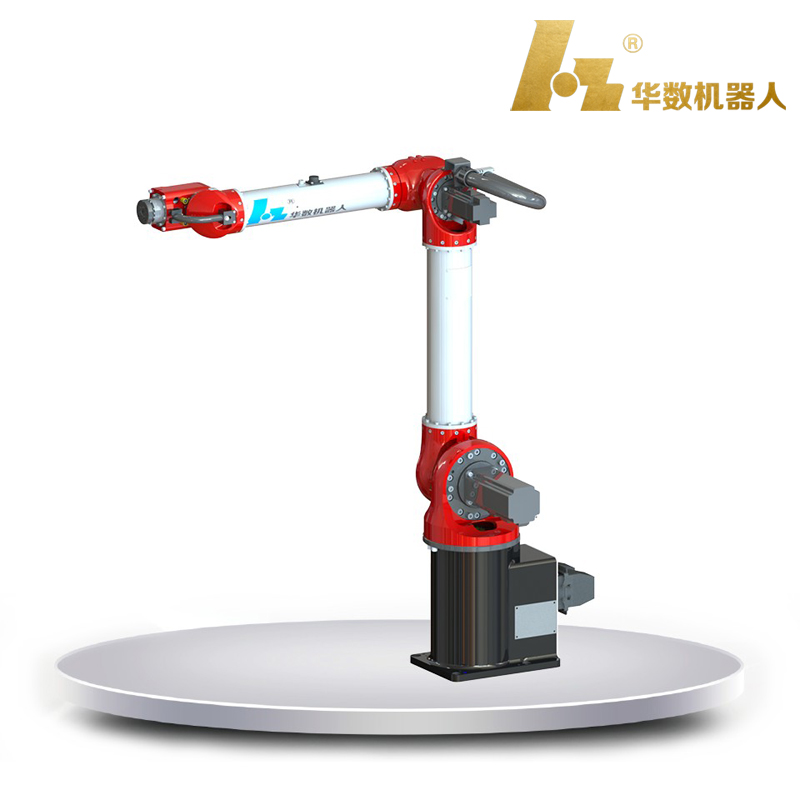

HSR-BR609 Double Rotary Robot

The BR6 series is specially developed for situations with small installation space, high tempo requirements and high cost performance. It is especially suitable for assembly, high-speed handling, rapid stamping, densely arranged drilling centers, loading and unloading workpiece, configuration of 3D visual sorting, etc. With a body weight of around 50kg, BR6 series is a new type of structural robot with a very high cost performance.
Cost-effective. More powerful in the same level of load than other robot with the same arm length, and the price is more affordable.
Feature 1: 360° full coverage without any blind angles.
Feature 2: The 5-axis and 6-axis of Highly protected version can withstand water spray from any direction.
Feature 3: Human-computer collaboration
Feature 4: Small occupied area.
Feature 5: High precision and high flexibility.
Feature 6: High speed with small inertia.
Feature 7: Light weight, able to be installed in any direction.
Feature 8: Modular, serialized, customized.
Feature 9: Cost-effective.

Application Cases of the BR Series Robot

Technical Parameters

Industrial robotHSR-BR609
Degree of freedom6
specified load9KG
Maximum working radius1042mm
Repeatability±0.05mm
Range of motionJ1±155°
J2-178°/-2°
J3+141.5°/+398.5°
J4±90°
J5±96.5°
J6±360°
Rated speedJ1222°/s,3.87rad/s
J2175°/s,3.05rad/s
J3198°/s,3.45rad/s
J4225°/s,3.92rad/s
J5225°/s,3.92rad/s
J6360°/s,6.28rad/s
Maximum speedJ1300°/s,5.23rad/s
J2250°/s,4.36rad/s
J3360°/s,6.28rad/s
J4450°/s,7.85rad/s
J5375°/s,6.54rad/s
J6600°/s,10.46rad/s
Allowable moment of inertiaJ60.15㎏㎡
J50.23㎏㎡
J40.42㎏㎡
Allowable torqueJ612.7NM
J516.5NM
J420.4NM
Applicable environmenttemperature0~45°
humidity20%~80%
otherAvoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma).
Cable Length of Instructor8metre
Body-cabinet connection length3metre
I/OparameterDigital:32 inputs, 31 outputs (one for control cabinet fault indicator output)
battery capacity2.6kVA
rated power2.1kW
Rated voltageSingle phaseAC220V
Rated current11.3A
Body protection gradeIP54
Installation methodGround installation
Body weight48kg
Control cabinet protection gradeIP53
Control cabinet size500(wide)×270(thick)×530(high)-can stand
Control cabinet weight38KG

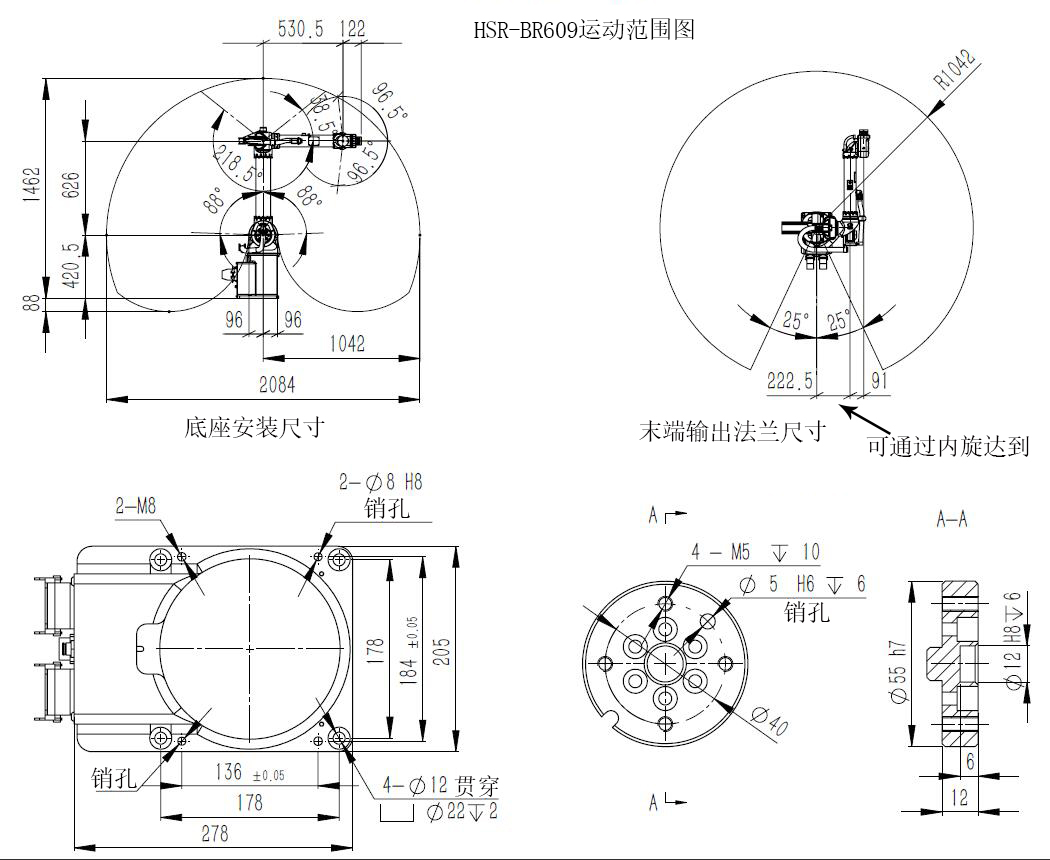

Parameter Diagram of The Industrial Robot


About:HSR-BR609 Double Rotary Robot

download

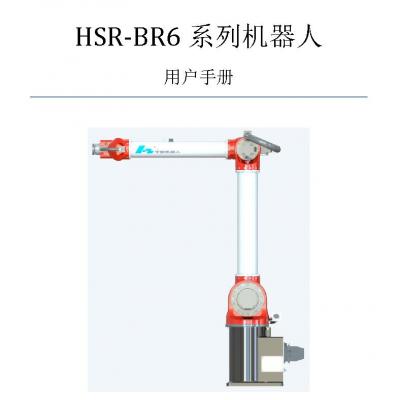

Huashu HSpad instruction manual

Huashu HSpad instruction manual

download
HSR-BR609 Simulation model.rar

HSR-BR609 Simulation model.rar

download
HSR-BR609 Three-dimensional model.zip

HSR-BR609 Three-dimensional model.zip

download
Huashu BR6 Series Double Rotary Robot Folding.rar

Huashu BR6 Series Double Rotary Robot Folding.rar

download
HSR-BR6 Series Mechanical and Electrical Operation and Maintenance Manual.pdf

HSR-BR6 Series Mechanical and Electrical Operation and Maintenance Manual.pdf

download
