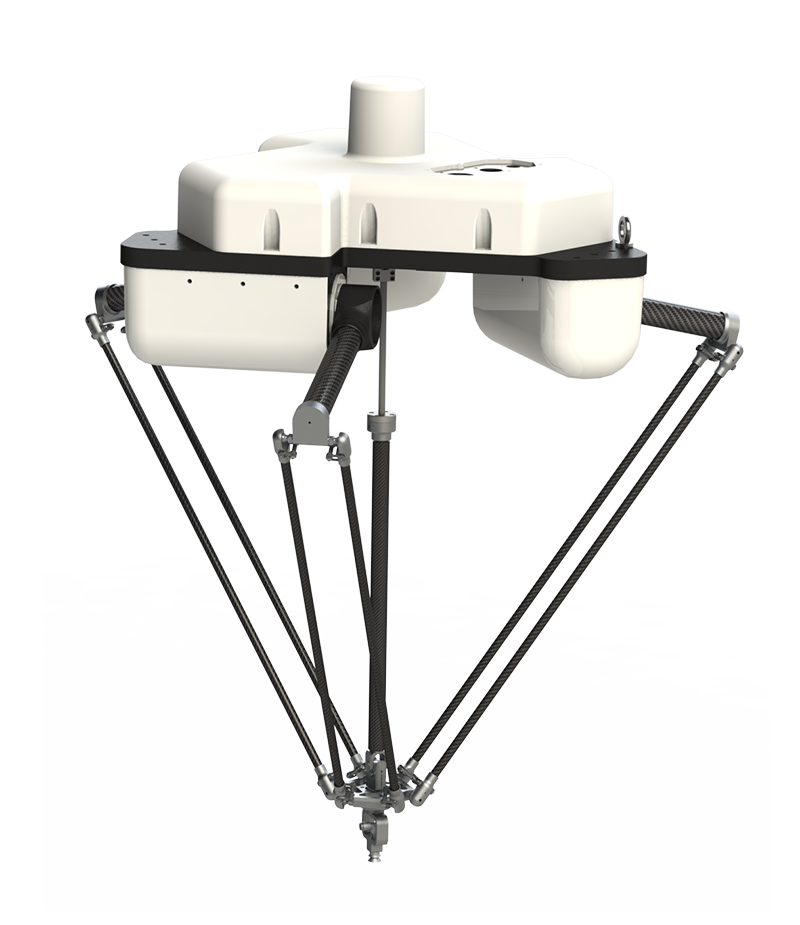

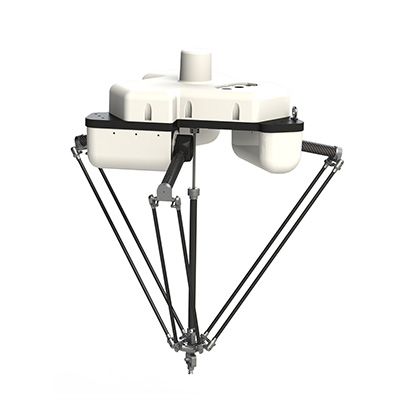

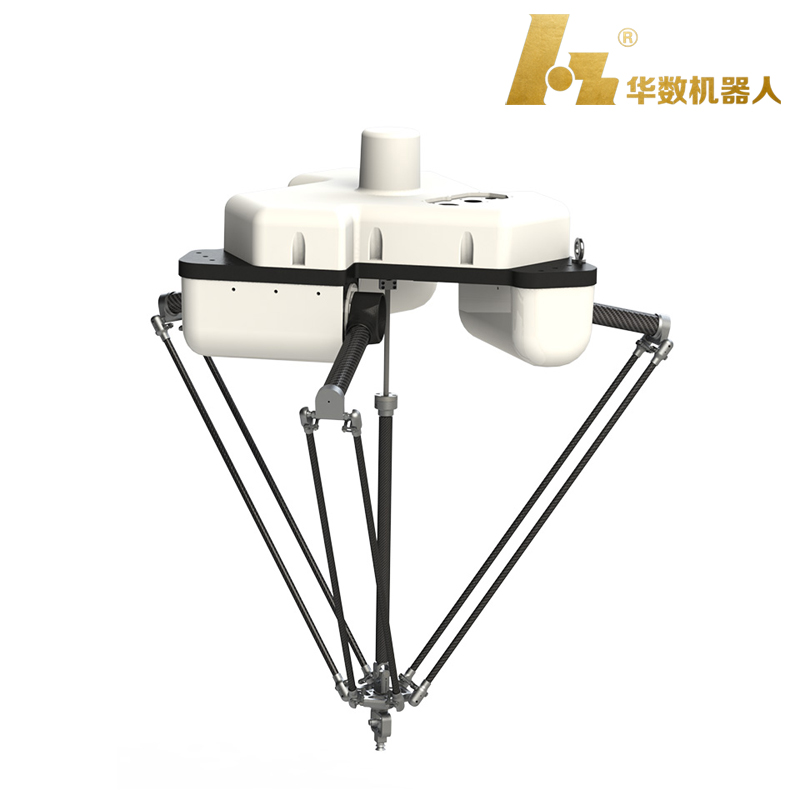

HSR-DT801B

"The DT801B is suitable for fast sorting or boxing in various industries, integrated intelligent visual recognition, and good dynamic tracking. The 1KG load can meet most products that require fast sorting. DT_Catch software integrates visual settings, tool settings, The track setting, palletizing module and calibration module are integrated to simplify the operation process, so that users can change the program they need at any time. Mature motion control technology ensures the stability of the robot system. The key moving parts adopt imported mature brand to ensure the service life.
Characteristic:
1. Precise positioning: Repeat positioning accuracy is up to 0.1mm.
2.Visual Intelligent Recognition: The robot comes with a vision system that recognizes and accurately locates the shape, features and posture of the target.
3. Conveyor dynamic tracking: Dynamically capture the target of visual recognition, greatly improving the efficiency of capture.
4. High speed: No-load grabbing beat can reach 140 times / minute (span 400mm)"

Industrial Robot Solution

Technical Parameters

Industrial robotHSR-DT801B

four-axis
Cartesian coordinate operating range:R400mm radius
Z200mm
Joint operating range:J1+5°/+125°
J2+5°/+125°
J3+5°/+125°
J4±360°
Running beat(25-400-25)140
Repeatability±0.1mm
Rated load1kg
Motor power1-3axis750W
Motor power4th axis400W
Total power3000W
Voltage380V
I/O parameterDigital: 32 inputs, 32 outputs
IP gradeIP54
Ambient humidity< 85%
ambient temperature1-45℃
The weight of the whole machine110kg
Installation methodhoisting
Control cabinet protection gradeIP53
Control cabinet size560(wide)×330(thick)×730(high)
Control cabinet weight45KG

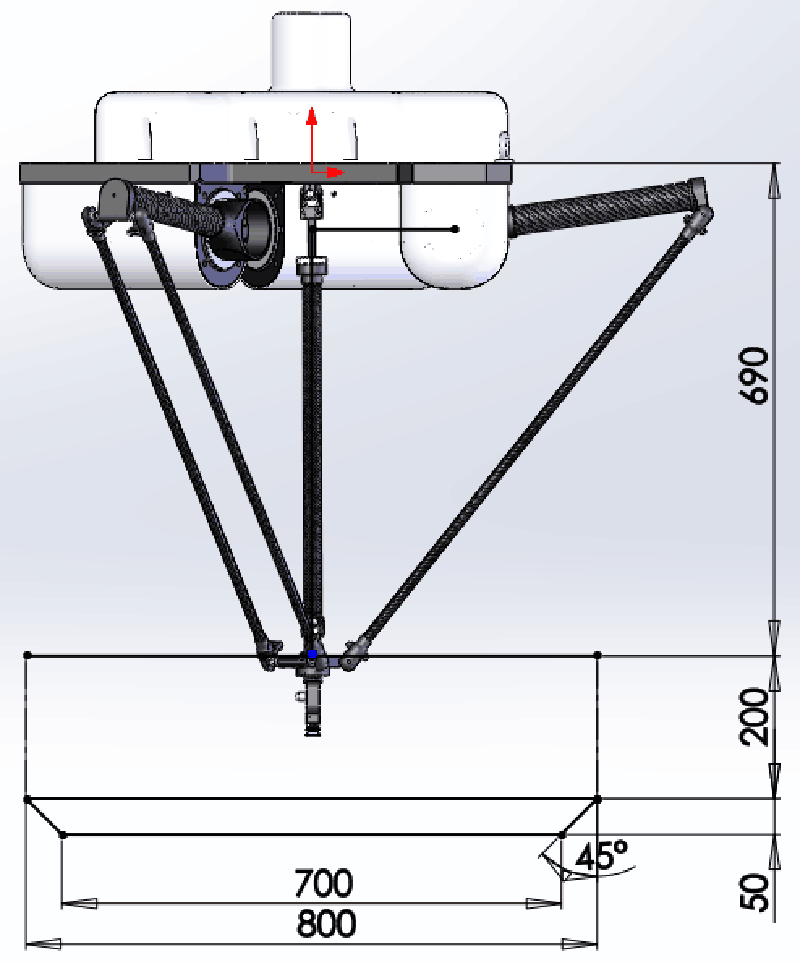

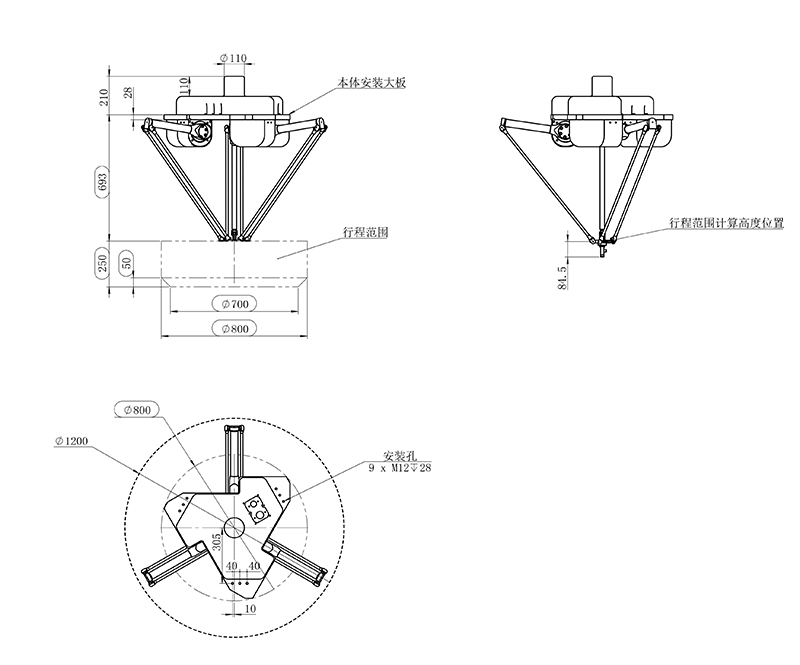

parameter map of industrial robot




About:HSR-DT801B

download

HSR-DT801B Three-dimensional model.zip

HSR-DT801B Three-dimensional model.zip

download
Vision-based Delta Robot Dynamic Capture System Instruction ManualV1.0.pdf

Vision-based Delta Robot Dynamic Capture System Instruction ManualV1.0.pdf

download
